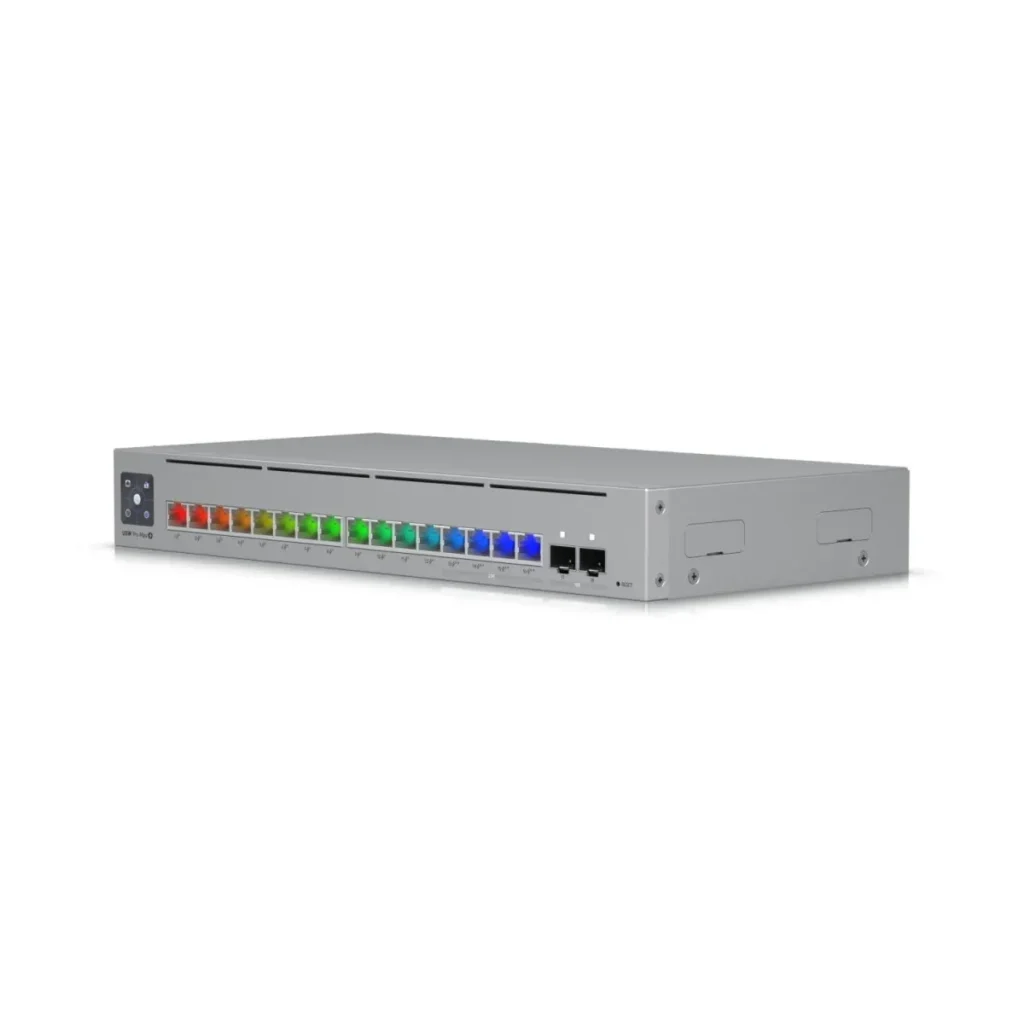

Ubiquiti UniFi Pro Max 16 PoE Switch
- 12 × 1 GbE RJ45 ports (PoE/PoE+)
- 4 × 2.5 GbE RJ45 ports (PoE++)
- 2 × 10 Gb SFP+ uplink ports
- Total PoE power budget: 180 W
- High switching capacity: 84 Gbps
- Non-blocking throughput: 42 Gbps
- Forwarding rate: approx. 62.5 Mpps
- Fanless silent operation
- 1.3-inch touchscreen display for status monitoring
- Etherlighting
- Our Corporate customers can place their orders at info@vinarq.co.ke.
- Call Vinarq Solutions for Repairs at 0745108788.
- Contact us for the most up-to-date pricing before ordering.
- NB: Warranty registration is the customer's responsibility. Our prices are Exclusive of VAT.
The Ubiquiti UniFi Pro Max 16 PoE Switch is a premium managed network switch built for high-performance PoE deployments in modern offices, studios, or smart-building environments. It combines advanced Layer 3 routing, high throughput, and PoE++ capability to power demanding devices like access points, cameras, and VoIP systems all within a quiet, fanless form factor. The 1U rack-mountable enclosure is made from steel and includes an onboard touchscreen for at-a-glance system status and diagnostics.
With 16 RJ45 ports,12 supporting PoE/PoE+ and 4 supporting PoE++ (up to 60 W per port), and two 10 Gb SFP+ uplink ports, this switch delivers both connectivity and power in one elegant solution. It offers a total PoE budget of 180 W, ultra-fast switching capacity, and seamless integration with the UniFi Network Controller for centralized monitoring and management. Whether you’re setting up next-gen WiFi, surveillance, or AV systems, this switch serves as a robust backbone that future-proofs your infrastructure.
Ubiquiti UniFi Pro Max 16 PoE Switch Key Features
- 12 × 1 GbE RJ45 ports (PoE/PoE+)
- 4 × 2.5 GbE RJ45 ports (PoE++)
- 2 × 10 Gb SFP+ uplink ports
- Total PoE power budget: 180 W
- High switching capacity: 84 Gbps
- Non-blocking throughput: 42 Gbps
- Forwarding rate: approx. 62.5 Mpps
- Fanless silent operation
- 1.3-inch touchscreen display for status monitoring
- Etherlighting™ per-port RGB indicators
- Rack-mountable and wall/desktop mountable flexibility
- Advanced Layer 2 & Layer 3 features: inter-VLAN routing, DHCP relay, static routing
Ubiquiti UniFi Pro Max 16 PoE Switch Key Features:
- 12 × 1 GbE RJ45 ports (PoE/PoE+)
- 4 × 2.5 GbE RJ45 ports (PoE++)
- 2 × 10 Gb SFP+ uplink ports
- Total PoE power budget: 180 W
- High switching capacity: 84 Gbps
- Non-blocking throughput: 42 Gbps
- Forwarding rate: approx. 62.5 Mpps
- Fanless silent operation
- 1.3-inch touchscreen display for status monitoring
- Etherlighting
- per-port RGB indicators
- Rack-mountable and wall/desktop mountable flexibility
- Advanced Layer 2 & Layer 3 features: inter-VLAN routing, DHCP relay, static routing
